RackMount Kit for Fortinet 60C / 60D


RM-FR-T3:

RM-CP-T1

This product is no longer available.

Please Contact us for more information.


All rack mounts are subject to the availability of given stocks and can vary significantly
based on the timing and the size of the order.

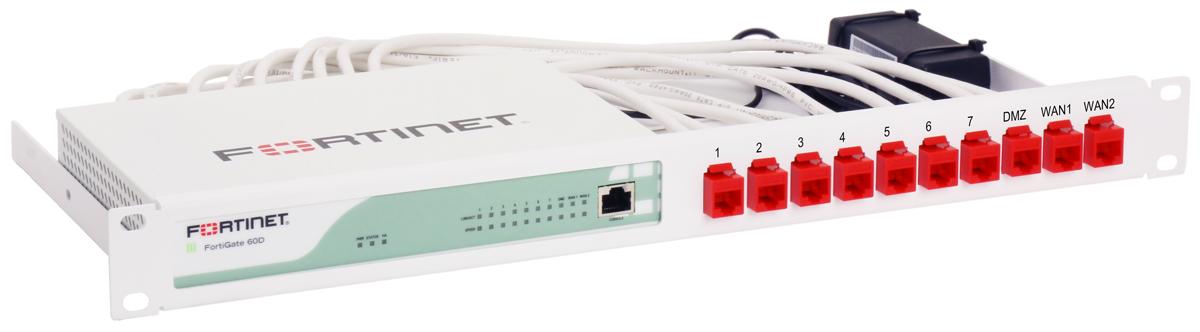

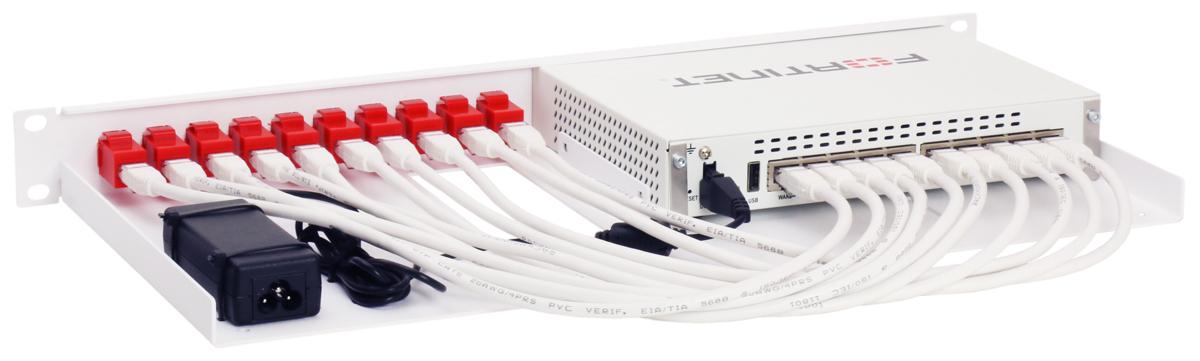

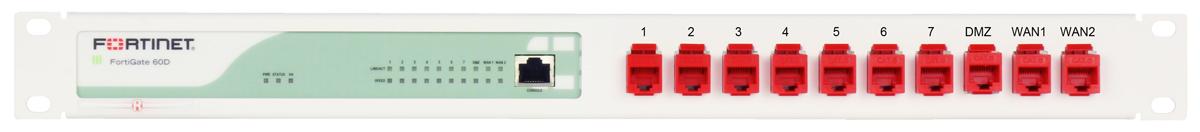

The RM-FR-T3 gives you the ability to mount your Fortinet desktop firewalls in a 19" rack. The rack is tailored specifically for the listed models to guarantee a perfect fit. In addition, the connections are brought to the front for easy access. The power supply is fixed to prevent an accidental loss of power.

Assembly will take about 5 minutes. Simply slide your Fortinet device in the kit, place the retainers, connect the supplied cables to the keystones and fix the power supply to the rack.

Image Views:


Specifications
Manufacturer Rackmount.IT
Model Fortinet
For Use
  • FortiGate 60C
  • FortiGate 60D
Color RAL 9003 Signal White
Height 1U
Dimensions
(height x width x depth)
1.73 in. x 18.98 in. x 8.54 in. (44 x 482 x 217 mm)
Number of connections brought to the front 10
Console port to the front Yes
Cables 10x 0.5m cables
Couplers 10x RJ45 couplers
What's in the box
  • 1x CP-RackĀ + RJ45 couplers
  • CablesĀ
  • Assembly materials
  • Installation guide


Download the RM-FR-T3 Datasheet (PDF).
