RackMount Kit for Fortinet FortiGate 80F / 81F


RM-FR-T15:

All rack mounts are subject to the availability of given stocks and can vary significantly
based on the timing and the size of the order.

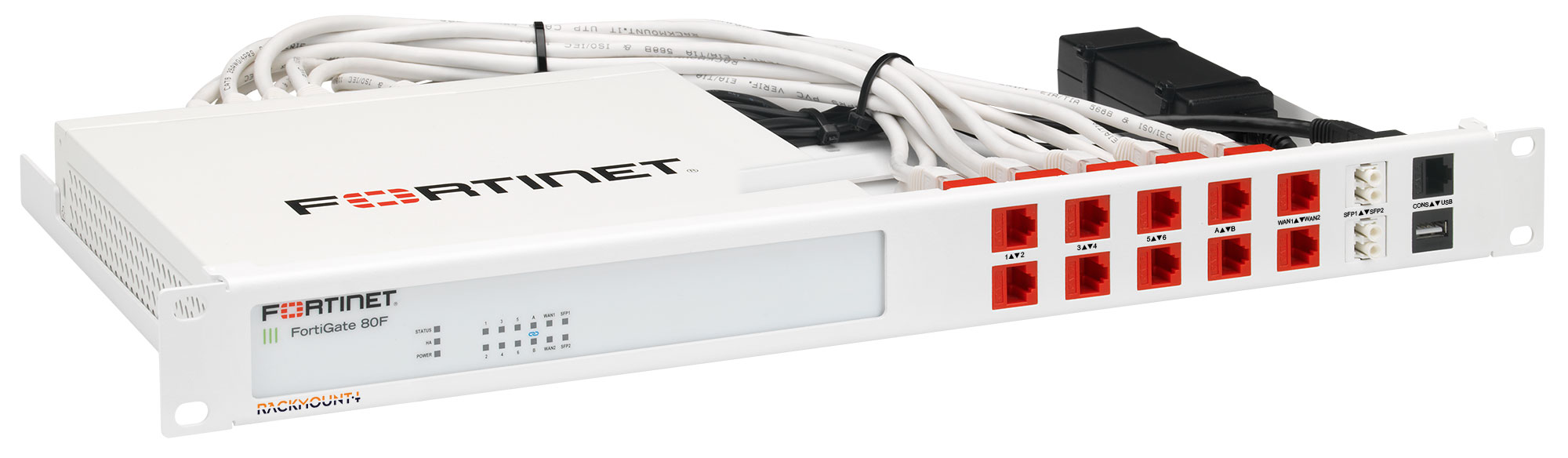

The RM-FR-T15 gives you the ability to mount your Fortinet desktop firewall in a 19" rack. The rack is tailored specifically for the listed models to guarantee a perfect fit. In addition, the connections are brought to the front for easy access. The power supply is fixed to prevent an accidental loss of power.

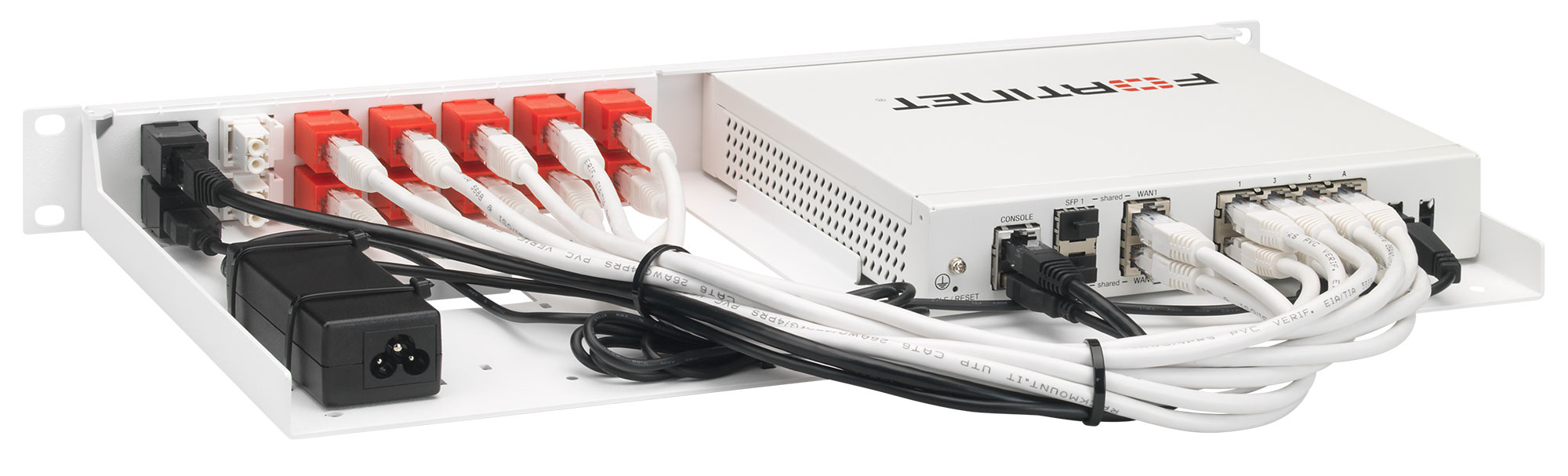

Assembly will take about 5 minutes. Simply slide your Fortinet device in the kit, place the retainers, connect the supplied cables to the keystones and fix the power supply to the rack.

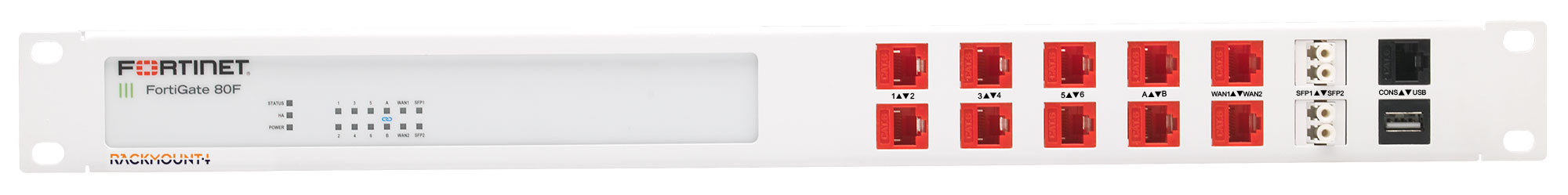

Image Views:

Specifications
Manufacturer	Rackmount.IT
Model	Fortinet
For Use	FortiGate 80F FortiGate 81F
Color	RAL 9003 Signal White
Form Factor	1U
Dimensions (height x width x depth)	1.73 in. x 18.98 in. x 8.54 in. (44 x 482 x 217 mm)
Number of connections brought to the front	14
Console port to the front	Yes
Cables	12x 0.5m cables
Couplers	10x RJ45 couplers 1x USB coupler 2x Fiber couplers
What's in the box	1x FortiRack + RJ45 couplers Cables  Assembly materials Installation guide

Download the RM-FR-T15 Datasheet (PDF).
