RackMount Kit for Fortinet FortiGate 70G / 70F / 60E / 60F Series


RM-FR-T10:

All rack mounts are subject to the availability of given stocks and can vary significantly
based on the timing and the size of the order.

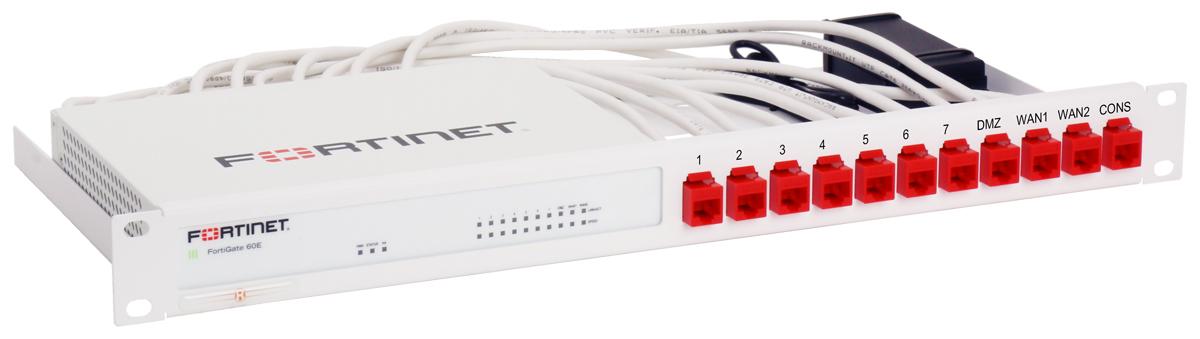

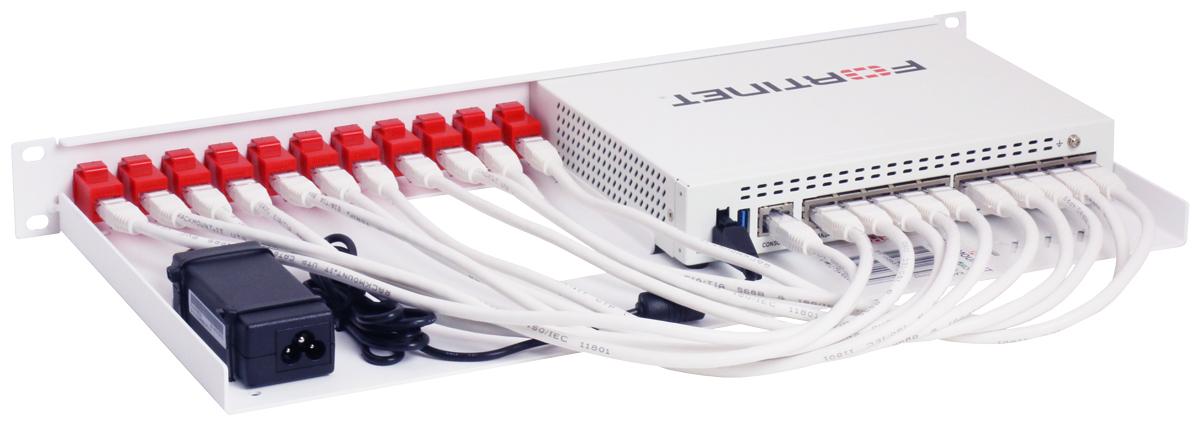

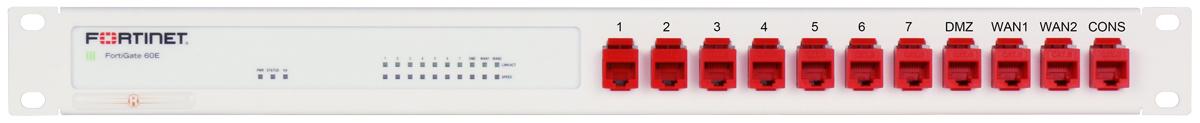

The RM-FR-T10 gives you the ability to mount your Fortinet desktop firewalls in a 19" rack. The rack is tailored specifically for the listed models to guarantee a perfect fit. In addition, the connections are brought to the front for easy access. The power supply is fixed to prevent an accidental loss of power.

Assembly will take about 5 minutes. Simply slide your Fortinet device in the kit, place the retainers, connect the supplied cables to the keystones and fix the power supply to the rack.

Image Views:

Specifications
Manufacturer	Rackmount.IT
Model	Fortinet
For Use	FortiGate 60E FortiGate 60E-POE FortiGate 60E-DSL FortiGate 61E FortiGate 60F FortiGate 61F FortiGate 70F FortiGate 70G FortiADC 60F
Color	RAL 9003 Signal White
Form Factor	1U
Dimensions (height x width x depth)	1.73 in. x 18.98 in. x 8.54 in. (44 x 482 x 217 mm)
Number of connections brought to the front	11
Console port to the front	Yes
Cables	11x 0.5m cables
Couplers	11x RJ45 couplers
What's in the box	1x FortiRack + RJ45 couplers Cables Assembly materials Installation guide

Download the RM-FR-T10 Datasheet (PDF).

Pricing Notes:

• Pricing and product availability subject to change without notice.
