RackMount Kit for Cisco ASA 5506 X



Sorry, this product is no longer available, Please contact us for a replacement.

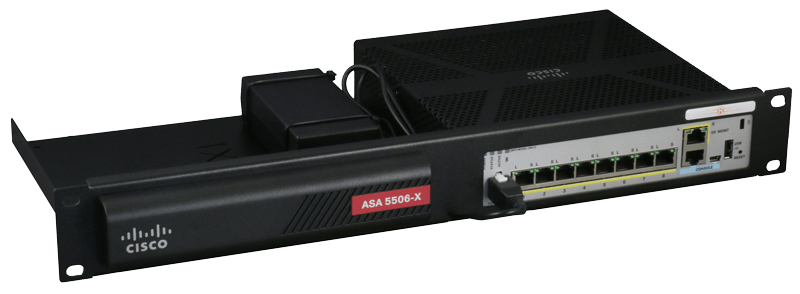

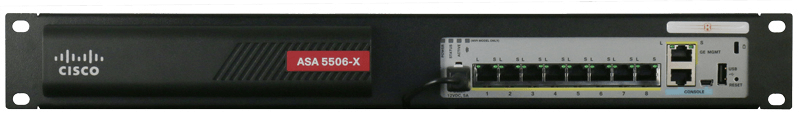

The RM-CI-T2 gives you the ability to mount your Cisco desktop firewalls in a 19" rack. The rack is tailored specifically for the listed models to guarantee a perfect fit. The firewall is placed backwards in the rack, to ensure the connection are easily accessible. The front panel can be detached and reattached to the front of the rack.

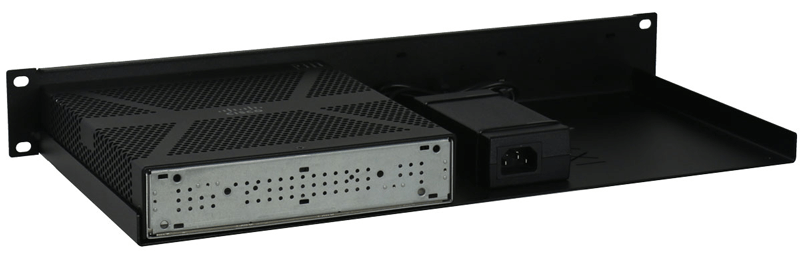

Assembly will take about 5 minutes. Simply slide your Cisco device backwards in the kit, place front panel on the front of the rack and fix the power supply.

The RM-CI-T2 is now out of production. The replacement rack mount kit which is compatible with the ASA 5506-X is theĀ RM-CI-T8.

Image Views:

Manufacturer Rackmount.IT
Model Cisco
For Use Cisco ASA 5506
Color RAL 9005 Jet Black
Height 1.3U
2U with the supplied front plate
(height x width x depth)
2.32 in. x 18.98 in. x 8.54 in. (59 x 482 x 217 mm)
Number of connections brought to the front 10
Console port to the front Yes
Cables None
Couplers None
What's in the box
  • 1x Cisrack
  • 1x Rackmount.IT front plate
  • Assembly materials
  • Installation guide

Download the RM CI T2 Datasheet (PDF).
